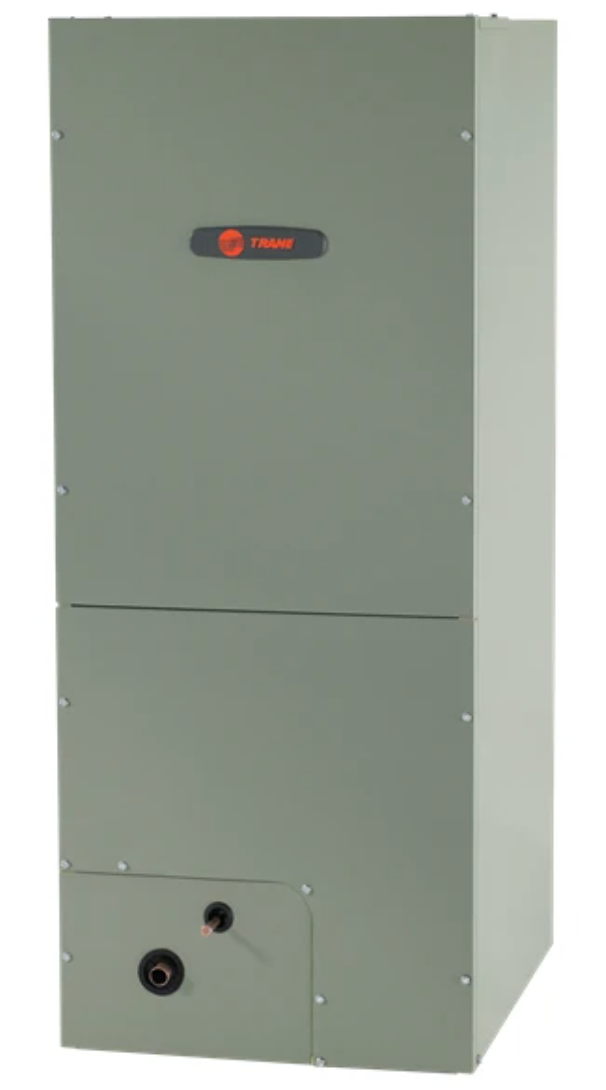

Trane Air Handler 18K - 30K BTU Single Stage B - Cabinet

Trane Air Handler 18K - 30K BTU Single Stage B - Cabinet

The air handler is a key component of any HVAC system that houses the blower fan motor, evaporator coil and optional electric heating kit. This Trane 5TEM4 air handler provides unmatched quality and is built for lasting durability. Offering energy-efficiency and superior performance. Paired with any matching single stage, straight cool condenser or heat pump this system brings comfort to any home or business.

Key Features:

• TXV (Thermal Expansion Valve): Providing precise R454B refrigerant flow that allows the system to operate at peak performance.
• Multiple-Speed Blower: Providing exceptional results for delivering precision heating and airflow performance in any application.
• Equipment Durability: Designed, constructed and built to last with it's all aluminum coil that resists corrosion and provides consistent reliability.
• Multi-Positional: Allowing flexible installation options to accommodate a variety of different spaces, locations or applications.

Specifications:

Air Handler Model: 5TEM4B03AC31SA

Capacity: 18K - 30K BTUH

Stages: Single

Heat Source: Electric

Heat Kit Model: BAYHTR1505BRKC (5KW Heat Kit Included)

Cabinet Size: B Cabinet (Medium dimensions in size)

Dimensions: Height 46-3/4 x Width 18-1/2 x Depth 21-1/8in

Refrigerant Type: R454B

Shipping Weight: 126 lbs.

Tonnage: 1.5 - 2.5 ton

Configuration: Multi-positional

Equipment Warranty: 10-year parts warranty when registered with Trane.

Trane Air Handler Limited Warranty

Installation available in Dallas / Fort Worth, Texas and surrounding areas currently on all systems. Call for information and pricing! 214-859-2503
